Design and Build of 3x Wash Down Pump Packages

1 min read
Share LinkedIn
<span id="hs_cos_wrapper_name" class="hs_cos_wrapper hs_cos_wrapper_meta_field hs_cos_wrapper_type_text" style="" data-hs-cos-general-type="meta_field" data-hs-cos-type="text" >Design and Build of 3x Wash Down Pump Packages</span>
  • Client: Consultant (end user was BHP)
  • Industry: Mining (iron ore)
  • Package Type: Process Pump Package
  • Application: Heavy vehicle wash down booster pump packages


Package Components

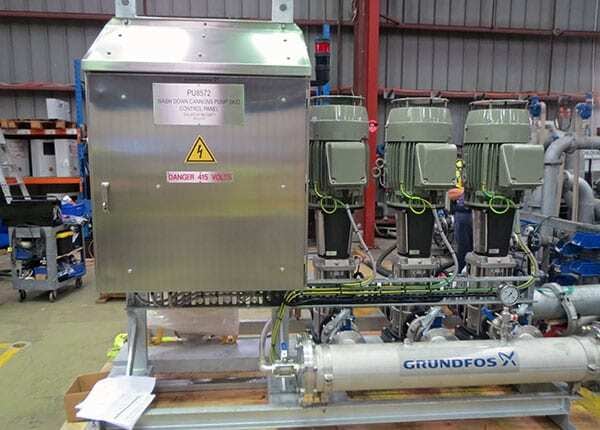

  • Customized Grundfos Hydro MPC-S 3x CRI90-3 package.
  • 22kW 415V 50Hz Toshiba IP66 motors
  • DN 200JE AS2129 Table E 316 s/s Manifolds
  • 3x DN100 non return valves
  • 0-16bar pressure gauge
  • Mounted on galvanized base
  • 1x 100L , 25bar free standing AS1210 certified pressure tank, mounted on skid base frame
  • 3x DN100 Ebro butterfly valves
  • Control panel complete with 3x 22kW Soft Starters
  • CU352 + IO351B controllers


MTP Capabilities

  • Design
  • CAD drawings
  • Skid fabrication
  • Assembly in MTP workshop
  • Witness factory acceptance testing
  • Full project documentation (eg IOM, MDR)
