F 550 GS

The FLUX eccentric worm-drive pump F 550 GS with planetary gear is suitable to pump thin to medium viscous media. The positive displacement pump works smoothly at constant pressure and ensures a gentle, pulsation-free pumping. The pump can be used mobile or stationary it has only a few components and can be easily dismantled.

• Vegetable oils • Paints and varnishes • Gluten • Solder pastes

• Flow rate: max. 50 l/min1 • Flow pressure: max. 8 bar1 • Delivery head: max. 80 mwc1 • Viscosity: min. 1 mPas - max. 30000 mPas1 • Outer tube diameter: min. 50 mm - max. 54 mm2 • Immersion length: 700, 1000, 1200 • Materials outer tube: Stainless steel • Media / Fluids: Highly flammable media, Petroleum products, Solvents, Thin media • Seal: open mechanical seal • Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters

ATEX Versions up to 12-2019 Not Ex versions

Commutator motors FEM 4070 F 457 / F 457 EL F 458 / F 458 EL F 460 Ex / F 460 Ex EL F 458-1 / F 460-1 Ex Brushless motor FBM 4000 Ex Three-phase gear motor F 403 F 414 Compressed air motor F 416 Ex / F 416-1 Ex / F 416-2 Ex

Eccentric Worm Drive Pumps Brochure.pdf EC Declaration of conformity EC-Type Examination Certificate Operating Instruction

For the industrial application in version with planetary gear for medias up to max. 30.000 mPas

You may be looking for

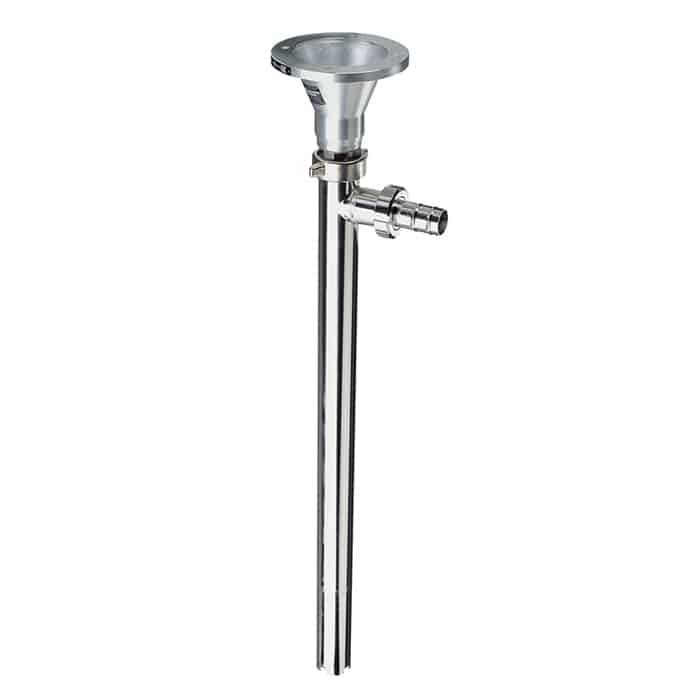

F 550 S

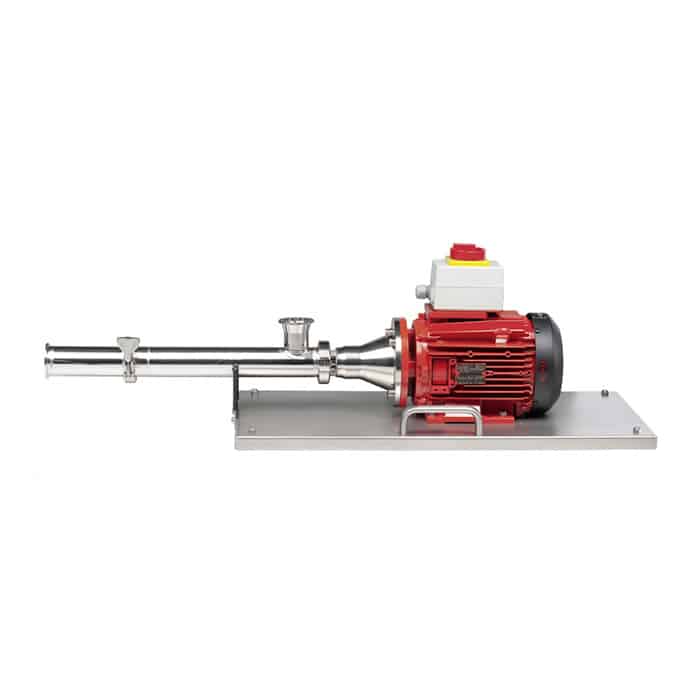

F 550 TR
