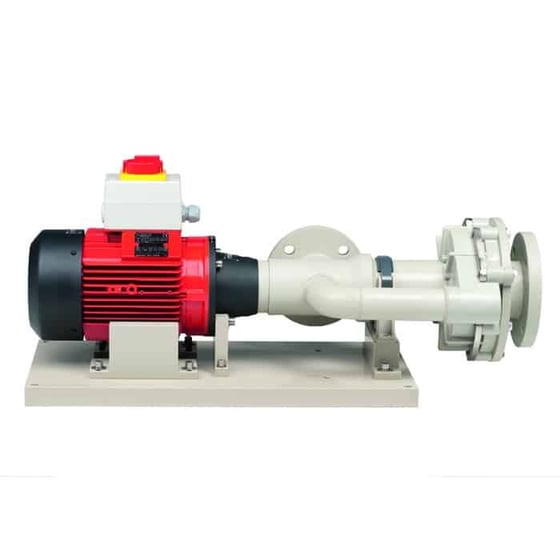

For pumping and conveying large quantities of heavy flammable liquids out of containers, tanks and open containers. The pump can be used horizontally, mounted onto a base plate or fixed vertically.
• Flow rate: max. 733 l/min1
• Delivery head: max. 33 mwc1
• Viscosity: min. 1 mPas - max. 2000 mPas1
• Diameter pump housing: max. 230 mm2
• Diameter mounting flanges: max. 185 mm2
• Materials outer tube: Polypropylene
• Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
• Seal: mechanical seal
• Container: Tanks > 1000 liters
