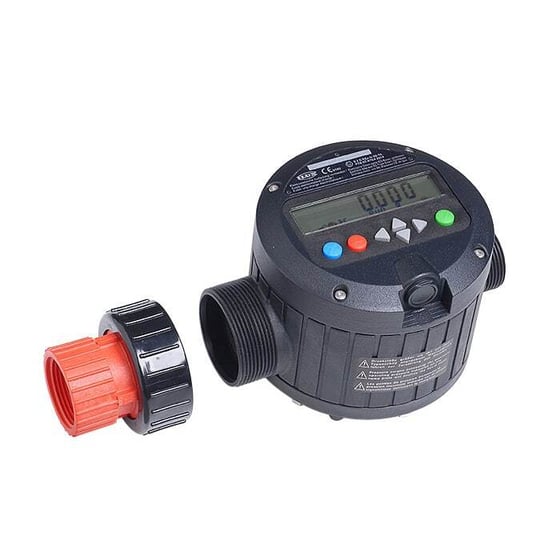

FMJ 100

The FLUX flow meter FMJ 100, built according to the nutating disc principle, can be used with FLUX drum pumps e.g. with the evaluation unit FLUXTRONIC® the filled quantity can be displayed. This way filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and the highest safety.

Battery acid, formic acid, ammonia, formic acid, boric acid, brake fluid, calcium chloride, ferric-III-chloride, photo developers, glycole, mineral oil, sodium hydroxide, phosphoric acid, hydrochloric acid, sulfuric acid to 60 %, tartaric acid, zinc chloride, citric acid.

• Flow rate: min. 10 l/min - max. 100 l/min • Filling accuracy: +/- 1 % • Operating pressure: max. 4 bar • Size of solids: max. 1,5 mm • Viscosity: min. 1 mPas - max. 2500 mPas • Housing Materials: Polypropylene • Media / Fluids: Acids, Alkalis

Flow meter_FMJ_100.pdf

EC-Declaration of conformity.pdf EC Type Examination Certificate.pdf Flow Meter Brochure.pdf

For manual filling of various fluids
