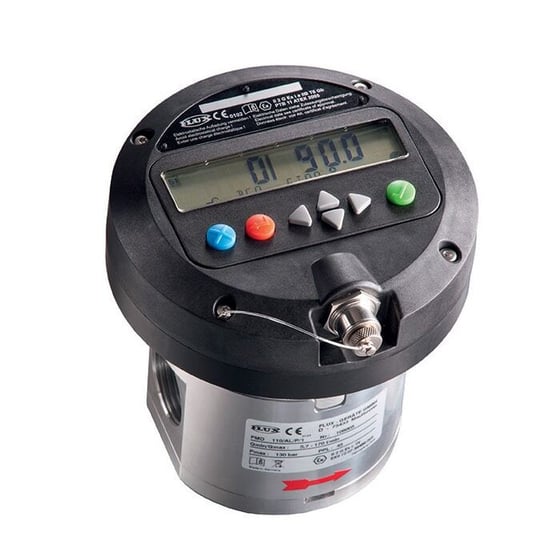

FMO 110

The flow meter FMO 110 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled.

• Oils • Gasoline • Solvents • Not self-lubricating media

• Flow rate: min. 5,7 l/min - max. 170 l/min • Filling accuracy: +/- 0,5 % • Operating pressure: max. 200 bar1 • Viscosity: min. 1 mPas - max. 500.000 mPas2 • Housing Materials: Aluminium, Polyvinylidene fluoride, Stainless steel • Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents

Flow meter_FMO_110_FDA-FOOD.pdf Flow meter_FMO_110_P.pdf Flow meter_FMO_110_S_flange.pdf Pressure_drop_curves.pdf FMO_104+110_0515.pdf FMO_104+110_Pulse-version_0515.pdf

EC-Declaration of conformity.pdf EC Type Examination Certificate.pdf Flow Meter Brochure.pdf

Flow meter for 5,7 - 170 l/min
