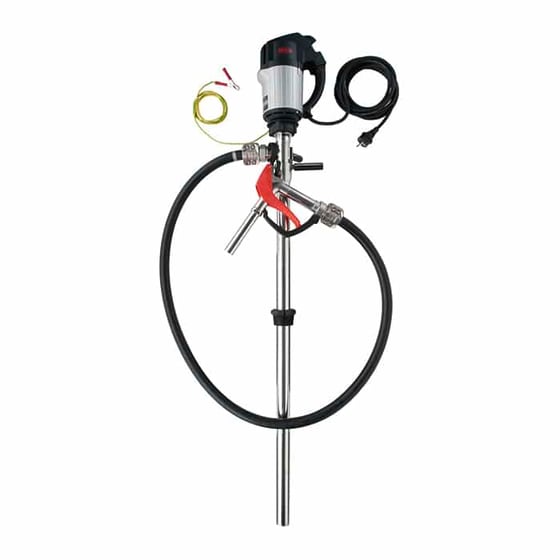

Pump Kit F 425

Pre-assembled pump kit for 99,98 % drum emptying. Due to integrated backflow, less than 0.05 l residual amount in 200 l drum is possible. For pumping thin media out of 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 425 with mechanical seal, outer tube in stainless steel, commutator motor F 460, hose, hand nozzle and compression gland. It can also be used in hazardous areas.

All high-grade and dangerous media: Petroleum, diesel, heating oil, hydraulic oil, engine oil, motor oil, gasoline, formic acid (85 %), ethyl glycol, petroleum, MEK (methyl ethyl ketone = butanone), octane, ethanol, methanol, butanol, acetan, toluene, isobutanol, propanol, xylene, urea solutions, white spirit

• Flow rate: max. 35 l/min1 • Delivery head: max. 8 mwc • Viscosity: min. 1 mPas - max. 600 mPas • Outer tube diameter: max. 41 mm • Immersion length: 1000, 1200 • Materials outer tube: Stainless steel • Media / Fluids: Fuels, Highly flammable media, Solvents, Petroleum products • Seal: with mechanical seal • Container: 1000 l IBC, 200 l drums ¹ The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Pump Kits Brochure.pdf Drum and Container Pumps Brochure.pdf EC Declaration of Conformity Drum Pumps.pdf EC Declaration of Conformity Motors.pdf
