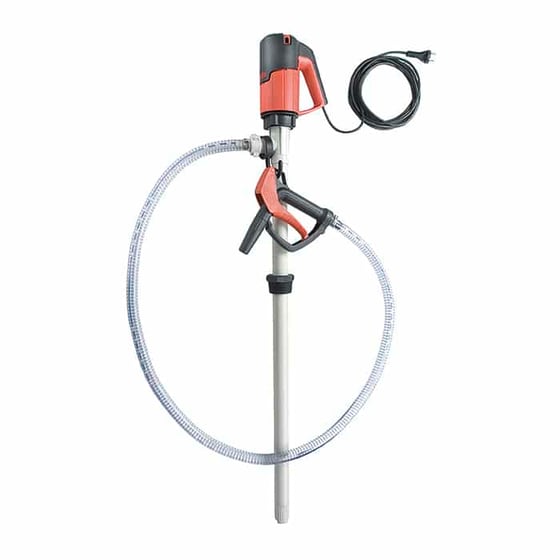

Pump Kit F 424 / F 430 For Acids

This pre-assembled pump kit is designed for pumping acids from 200 L drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). It includes an F 424/F 430 drum pump, available either sealless or with a mechanical seal, with a polypropylene outer tube. The kit also features a FEM 4070 commutator motor, hose, hand nozzle and compression gland.

• Boric acid • Fruit acids • Phosphoric acid (up to 50%) • Hydrochloric acid (up to 30%) • Sulfuric acid (up to 40%)

• Flow rate: max. 60 l/min1 • Delivery head: max. 9,5 mwc • Viscosity: min. 1 mPas - max. 600 mPas • Outer tube diameter: max. 41 mm • Immersion length: 1000, 1200 •Materials outer tube: Polypropylene •Media / Fluids: Alkalis •Seal: Sealless or with mechanical seal • Container: 1000 l IBC, 200 l drums ¹ The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Pump kits Brochure.pdf Pump Kits for Disinfectants and Cleaning Agents Flyer.pdf Operating instructions

For Acids
