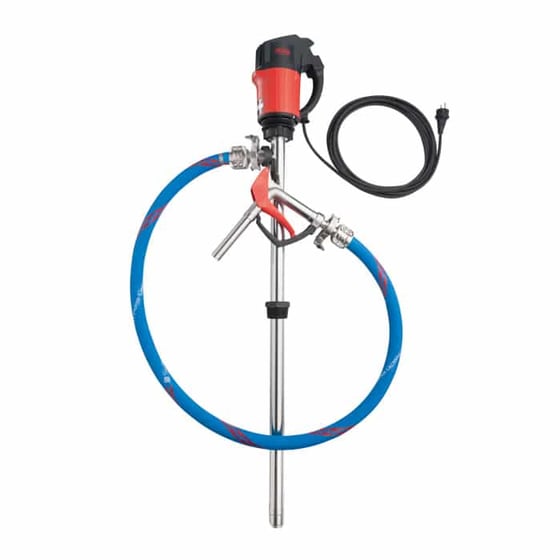

Pump Kit FP 427 / For Food and Pharma

Pre-assembled pump kit for food and pharma. The pump-kit is ideal for hygienic applications and suitable for conveying media out of drums, IBCs and other containers. It can be easily and quickly disassembled for cleaning / sterilization and can be completely stripped down to individual parts. Comprising drum pump FP 427 FOOD, outer tube stainless steel 1000 or 1200 mm, commutator motor F 458, hose, hand nozzle, hose connection and compression gland.

• Food • Cosmetic products • Thin media

• Flow rate: max. 50 l/min1 • Delivery head: max. 8 mwc2 • Viscosity: min. 1 mPas - max. 1000 mPas • Outer tube diameter: max. 43 mm • Immersion length: 1000, 1200 • Materials outer tube: Stainless steel • Seal: sealless • Container: 1000 l IBC, 200 l drums ¹ The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet. ² dependent on pump model, motor and medium

Drum and Container Pumps Brochure.pdf Pump kits Brochure.pdf EC Declaration of Conformity Drum Pumps.pdf EC Declaration of Conformity Motors.pdf
