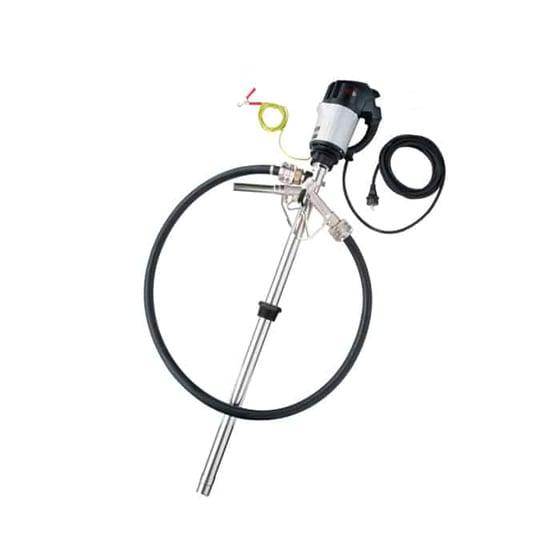

Pump Kit F 424 For Highly Flammable Media

Pre-assembled pump kit to pump highly flammable media out of 200 l drums or IBCs. Comprising drum pump F 424, outer tube in stainless steel, hose, hand nozzle and compression gland. As drive either the commutator motor F 460 or compressed-air motor F 416 are available.

• Acetone • Petrol • Butanol • Ethanol • Toluene

• Flow rate: max. 50 l/min1 • Delivery head: max. 13 mwc • Viscosity: min. 1 mPas - max. 800 mPas • Outer tube diameter: max. 43 mm • Immersion length: 1000, 1200 • Materials outer tube: Stainless steel • Media / Fluids: Highly flammable media, Petroleum products, Solvents • Seal: sealless • Container: 1000 l IBC, 200 l drums ¹ The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Drum and Container Pumps Brochure.pdf Pump kits Brochure.pdf EC Declaration of Conformity Drum pumps.pdf EC Declaration of Conformity Motors.pdf
