For Universal Applications

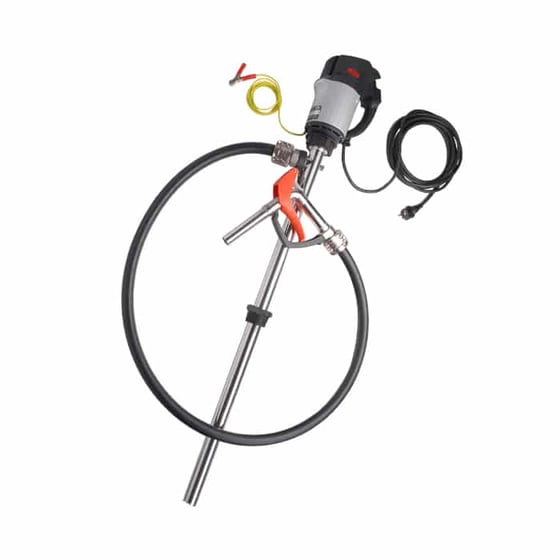

Pre-assembled pump kit to pump different media out of 200 L drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430, outer tube in stainless steel, hose, hand nozzle and compression gland. Driven either by commutator motor F 460 or compressed-air motor F 416.

• Cosmetic products • Pharmacy • Colours and varnishes • Cleaning agents • Disinfectants

• Flow rate: max. 50 l/min1 • Delivery head: max. 13 mwc • Viscosity: min. 1 mPas - max. 800 mPas • Outer tube diameter: max. 41 mm • Immersion length: 1000, 1200 • Materials outer tube: Stainless steel • Media / Fluids: Fuels, Highly flammable media, Petroleum products, Solvents • Seal: with mechanical seal • Container: 1000 l IBC, 200 l drums

¹ The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Pump Kit Brochure.pdf EC Declaration of Conformity Motors.pdf EC Declaration of Conformity Drum pumps.pdf Drum and Container pumps Brochure.pdf
