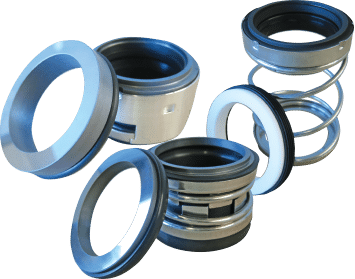

MS Single Series

MS2100 Range

The Aquaplus MS2100 is a compact, single spring, elastomer bellows mechanical seal. This seal type has a positive drive via drive bands which protects the bellows from torsional strain. Standards met are DIN24960, ISO3069, ANSIB73.1 M-1991.

MS20 Range

The Aquaplus MS20 are compact, single spring, elastomer bellows mechanical seal. This seal type has a positive drive. Standards met are imperial dimensions.

MS21 Range

The Aquaplus MS21 is a compact, single spring, elastomer bellows mechanical seal. This seal type has a positive drive. Standards met are imperial dimensions.

MS24 Range

The Aquaplus MS24 are compact, single spring, elastomer bellows mechanical seal. This seal type has a positive drive. Standards met are DIN24960.

MS 502 Range

The Aquaplus MS502 is a compact, single spring, elastomer bellows mechanical seal. This seal type incorporates a positive drive and is self-aligning to compensate for excessive shaft end play and run-out. With a non-clogging design will not be affected by build-up of solids. Standards met are DIN24960, ISO3069.

MS2100 Range • Temperature: -40ºC to +150ºC • Pressure in seal chamber: Up to 20 Bar • Linear velocity: Up to 15 M/Sec. MS20, MS21 & MS24 Ranges • Temperature: -20ºC to +180ºC • Pressure in seal chamber: Up to 10 Bar • Linear velocity: Up to 12 M/Sec. MS502 Range • Temperature: -40ºC to +205ºC • Pressure in seal chamber: Up to 40 Bar • Linear velocity: Up to 13 M/Sec.

MS2100 Range • Major use: Oil, Water, light non-dangerous chemicals in such industries as Wastewater treatment, Mining, Mineral processing, Pulp & Paper, Food processing, Marine and any other general application. MS20, MS21 & MS24 Ranges • Major use: Oil, Water, in such industries as Wastewater treatment, Mining, Mineral processing, Food processing and any other general application. MS502 Range • Major use: Oil, Water, light non-dangerous chemicals, light acids, Paint & inks in such industries as Wastewater treatment, Mining, Mineral processing, Pulp & Paper, Food processing, Marine, Offshore, Petrochemical, Pharmaceutical, Power generation, Paint & Ink.

Mechanical-Seals-Single-Spring-low-res.pdf
