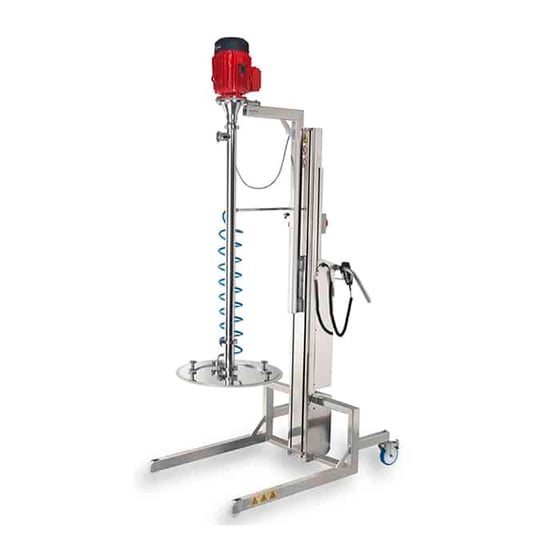

VISCOFLUX Mobile S

The VISCOFLUX mobile S drum emptying system was specifically designed for use in the pharmaceutical, food and cosmetics industries. It is ideally suited for ensuring efficiency and process safety while pumping high viscosity, paste-like, non-self-flowing media out of diverse drums – either with or without aseptic bags. Media can be transferred low-shear and continuously. The residual amount remaining in the drum is less than 1%. The mobile drum emptying system offers a high degree of flexibility and can also be operated in wet or damp production environments. The system's stainless steel process device bears the protection class IP 66.

• Tomato puree • Caramel • Fruit and vegetable concentrates • Peanut butter • Mayonnaise • Nut nougat paste • Chocolate (heated) • Concentrates for making sauces • Grease • Vaseline • Ointments • Hair and body care products • Wax, semi-solid • Glycerine • Lip gloss • Mascara • Facial masks

• Delivery rate max. 50 l/min • Delivery pressure max. 8 bar • Process device: battery operated, made of stainless steel with rollers made of solid plastic, IP 66, carrying load up to 100 kg, chassis available in two standard sizes: • 470 mm for euro pallets, 890 mm additionally for free-standing drums, drum dollies and universal pallets with 4 drums • For drum diameters: 560 mm or 571 mm, for conical drums (550 mm on top, 515 mm at the bottom), for drums with small openings Ø 540 mm on top, Ø 571 mm at the bottom • Pumps: Ø 54 mm, length 1,000 mm and 1,200 mm • F 560 also for left/right operation, also in FOOD version conform EC 1935/2004 and FDA CFR 21 for food uses (F 550 for industrial applications) • Motors: Three-phase motors from 0.75 kW, spur gear drive motors, compressed air motors • Process seal: NBR material conform EC 1935/2004, or FDA or FKM • Power supply for motor and switching cabinet • Ball valves for pressurised air provision, aeration and venting

VISCOFLUX mobile S

VISCOFLUX Mobile S - Drum Empying System Brochure.pdf EC Declaration of Comformity.pdf Operating Instructions.pdf

The drum emptying system with many advantages
