ISO Hydraulic Driven Pump Systems

About

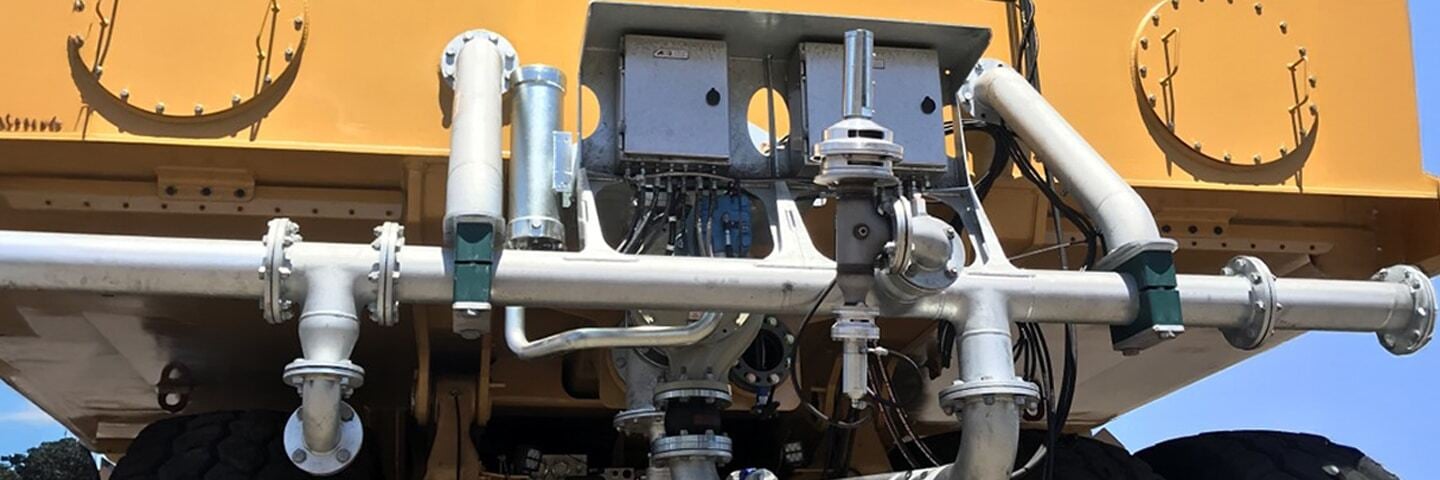

ISO Hydraulic Driven Pump Systems are specifically designed for mobile dust suppression, and can be fitted directly onto existing water cart trucks.

The system features a 2 bolt SAE flange mounted easy on/off hydraulic motor with a quick coupling arrangement.

The main advantage of the ISO Hydraulic Driven design is that it eliminates the need to carry couplings in stock or have a specialist on hand to align them. Furthermore, the speed of dismounting and remounting the unit onto the water cart itself reduces the time taken to service the pump, while at the same time, reducing the costs associated with scheduled servicing.

The end result is a pump system that will increase productivity and save you money.

2 bolt SAE flange mounted easy on/off hydraulic motor
Spline shaft drive arrangement
Medium speed, medium pressure and high speed, high pressure hydraulic drive option
Suction size: 100NB – 150NB
Discharge size: 65NB – 125NB
Flow range: 15 – 135L/s
Head range: 26 – 70m
Hydraulic drive output power: 20.5 – 126kW
Operating speed: 2000 – 2400rpm
Various construction materials available
