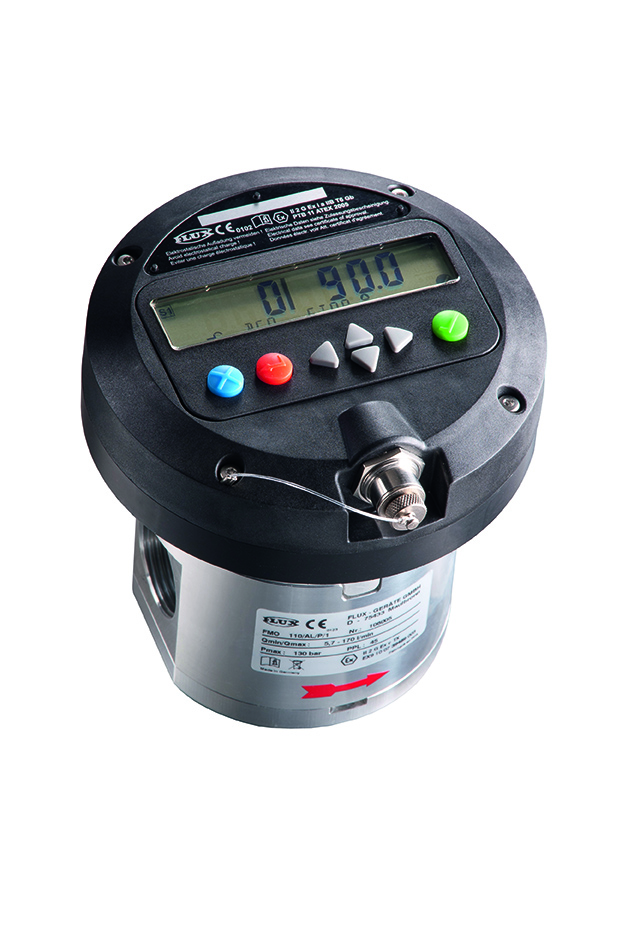

FMO 110

Flow meter for 5,7 - 170 l/min

  • Very precise dosing possible
  • High resistancy
  • Wide range of viscosities can be covered
  • Can be used for pulsating volume flows
  • Food version conforms to EC 1935/2004 and FDA CFR 21 for contact with food available

Contact us to order

Industries Served

The flow meter FMO 110 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled.

• Oils
• Gasoline
• Solvents
• Not self-lubricating media

Pressure Drop Curves.pdf

Technical Data Sheet.pdf

• Flow rate: min. 5,7 l/min – max. 170 l/min
• Filling accuracy: +/- 0,5 %
• Operating pressure: max. 200 bar1
• Viscosity: min. 1 mPas – max. 500.000 mPas2
• Housing Materials: Aluminium, Polyvinylidene fluoride, Stainless steel
• Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents
