Design and Build of 3x Wash Down Pump Packages

  • Client: Consultant (end user was BHP)
  • Industry: Mining (iron ore)
  • Package Type: Process Pump Package
  • Application: Heavy vehicle wash down booster pump packages

Package Components

  • Customized Grundfos Hydro MPC-S 3x CRI90-3 package.
  • 22kW 415V 50Hz Toshiba IP66 motors
  • DN 200JE AS2129 Table E 316 s/s Manifolds
  • 3x DN100 non return valves
  • 0-16bar pressure gauge
  • Mounted on galvanized base
  • 1x 100L , 25bar free standing AS1210 certified pressure tank, mounted on skid base frame
  • 3x DN100 Ebro butterfly valves
  • Control panel complete with 3x 22kW Soft Starters
  • CU352 + IO351B controllers

MTP Capabilities

  • Design
  • CAD drawings
  • Skid fabrication
  • Assembly in MTP workshop
  • Witness factory acceptance testing
  • Full project documentation (eg IOM, MDR)

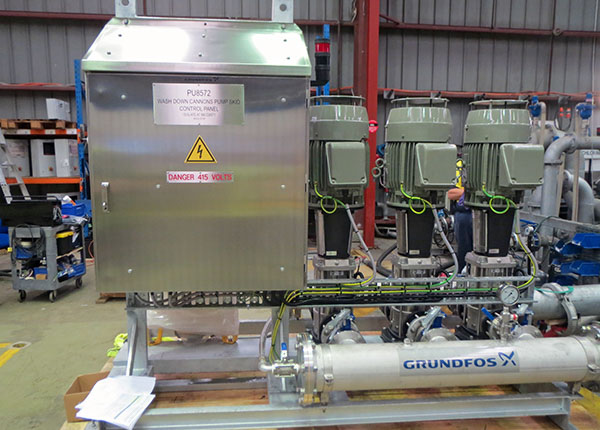

Wash Down Pump Package
