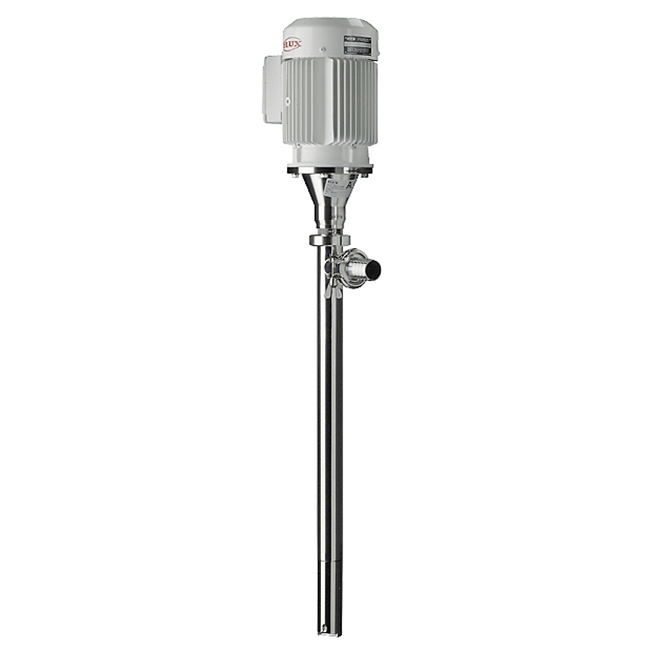

F 560 S
For the hygienic application in version with bearing flange up to max. 80.000 mPas
- Smooth pumping of thick, shear-sensitive and barely flowing product
- Sensitive media and solid components can be pumped
- Ready for immediate use by the submerged vertical installation in the container opening
- Available with 3A-certification
- Available as FLUX FOOD pump
- Bearing flange in stainless steel
- Pump/shaft/worm can be dismantled
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads
The FLUX eccentric worm-drive pump F 560 S with bearing flange is suitable to pump thin to highly viscous, pasty and still flowing media. The positive displacement pump works with little turbulences, at constant pressure and ensures a smooth, pulsation-free pumping. The pump can be mounted on a trolley or a console and can be used mobile or stationary. It has only a few components and can be easily dismantled.
• Screen printing inks
• Anticorrosion agents
• Cosmetic products, additives for creams
• Surfactants
• Peels
• Hair gel
• Lotions
• Shampoo
• Raw materials such as petroleum jelly & Maloxan
• Tomato sauce
• Dough
• Confectionery
• Sauces
• Baby food
• Fruit juice concentrates
• Aroma concentrate
• Dietary supplements
Dimensional Drawing F560-GS3-50-TR.pdf
Dimensional Drawings F560-GS3-50-TR.pdf
Dimensional Drawing F560GS1+2+3-FOOD_54-26_1014.pdf
Dimensional Drawing F560GS1+2+3-FOOD_50-21_1014.pdf
Dimensional Drawing F560-GS3-50-TR.pdf
Dimensional Drawing F560-S-54TR_pump-trolley_spur-gear-drive-motor.pdf
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 80000 mPas1
• Outer tube diameter: min. 50 mm – max. 54 mm2
• Immersion length: 700, 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Media with solid particles, Solvents, Viscous media
• Seal: closed mechanical seal
• Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters
- Compressed-air motors FPM 4-8 Ex
- Three-phase motors
- Spur gear drive motor
