F 560 TR
For the horizontal use in the hygienic area
- Optimal for viscous self-flowing media
- Suitable for shear-sensitive media
- Transfer at constant pressure
- Can be mounted on trolley or panel
- Smooth pumping of the liquid with very little turbulenc
- Available as FLUX FOOD Pump
- Comprehensive modular system
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads

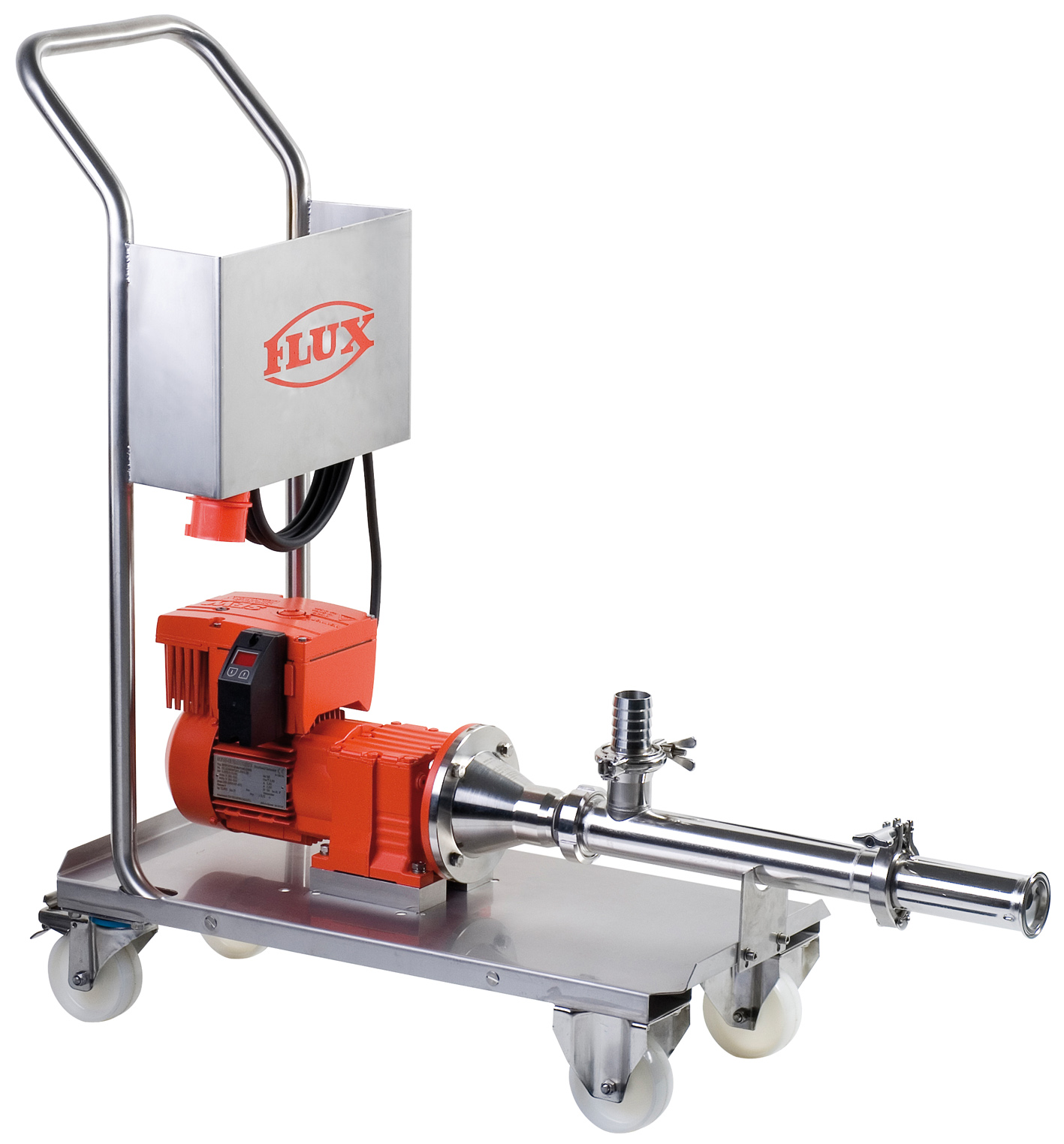

The FLUX eccentric worm-drive pump F 560 TR in horizontal version is perfect for containers that are not accessible from the top. It is used to pump thin to highly viscous, pasty The positive displacement pump works with little turbulences at a constant pressure that ensures a smooth, pulsation-free pumping. The pump can be mounted on a trolley or a console and can be used mobile or stationary. It has only a few components and can be easily dismantled.
• Liquid to no longer flowable foods
• Pharmaceutical ingredients
• Cosmetic products
• Vaseline
Dimensional Drawing 60-GS3-50-TR.pdf
Dimensional Drawing F560-S-54TR_pump-trolley_spur-gear-drive-motor.pdf
Dimensional Drawing F560-S-54-TR_pump-trolley_DSM.pdf
Dimensional Drawing F560-GS3-50-TR.pdf
Dimensional Drawing F560-GS3-50-TR.pdf
Dimensional Drawings F560-GS3-50-TR.pdf
Dimensional Drawing F560-S-54-TR_pump-trolley_spur-gear-drive-motor.pdf
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 50000 mPas1
• Outer tube diameter: min. 54 mm –
• Length: 400
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Viscous media
• Seal: closed mechanical seal
• Container: 1000 l IBC, Container with floor drain
