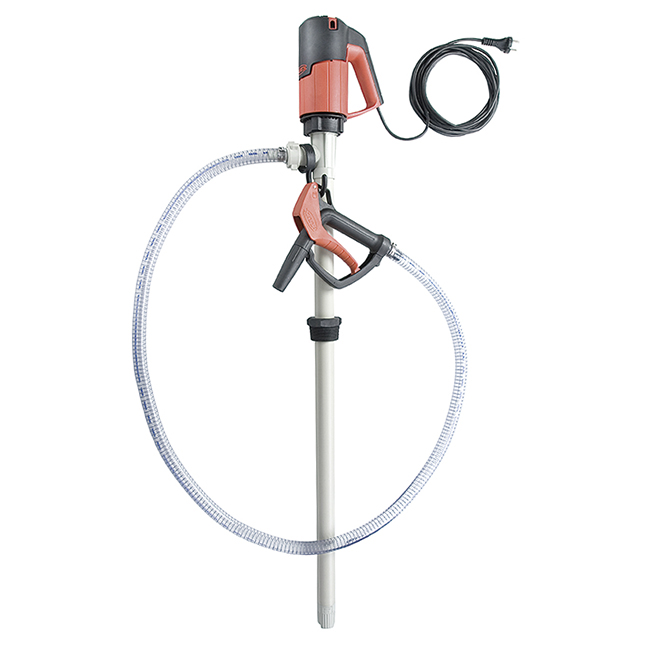

This pre-assembled pump kit is designed for pumping acids from 200 L drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). It includes an F 424/F 430 drum pump, available either sealless or with a mechanical seal, with a polypropylene outer tube. The kit also features a FEM 4070 commutator motor, hose, hand nozzle and compression gland.
Pump Kit F 424 / F 430 For Acids
For Acids
With drum pump F 424:- No seal wear
- No bearing wear
- Low maintenance
- Built to last
With drum pump F 430:
- Easy disassembly
- Universally and flexibly applicable
- Easy to clean as no medium can get into the inner tube
- No carrying-over of the medium - one pump can be used for different media
Industries Served
• Boric acid
• Fruit acids
• Phosphoric acid (up to 50%)
• Hydrochloric acid (up to 30%)
• Sulfuric acid (up to 40%)
• Flow rate: max. 60 l/min1
• Delivery head: max. 9,5 mwc
• Viscosity: min. 1 mPas – max. 600 mPas
• Outer tube diameter: max. 41 mm
• Immersion length: 1000, 1200
•Materials outer tube: Polypropylene
•Media / Fluids: Alkalis
•Seal: Sealless or with mechanical seal
• Container: 1000 l IBC, 200 l drums
1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.
