For Food and Pharma
- Ideal as an hygienic pump
- Sealless in the liquid area
- Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
- Transfers fluids containing solids such as juices with pulp or soups with spices
- Description
- Applications
- Characteristics
- Downloads

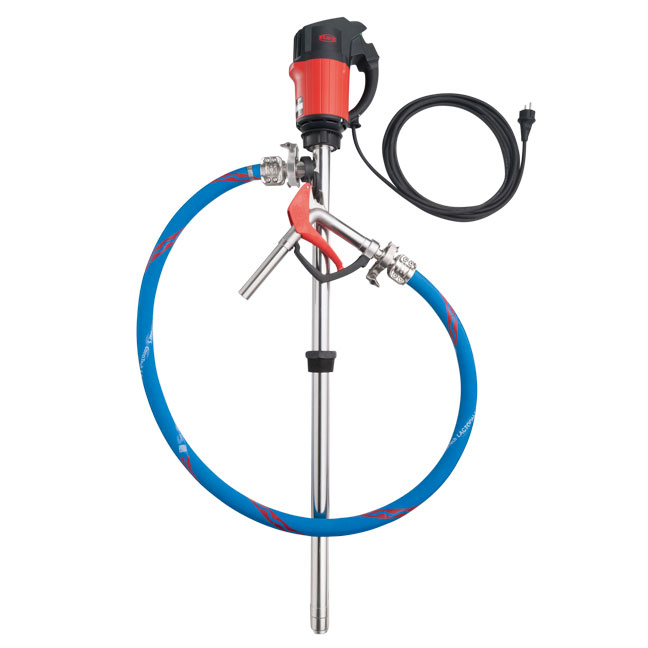

Pre-assembled pump kit for food and pharma. The pump-kit is ideal for hygienic applications and suitable for conveying media out of drums, IBCs and other containers. It can be easily and quickly disassembled for cleaning / sterilization and can be completely stripped down to individual parts. Comprising drum pump FP 427 FOOD, outer tube stainless steel 1000 or 1200 mm, commutator motor F 458, hose, hand nozzle, hose connection and compression gland.
• Food
• Cosmetic products
• Thin media
• Flow rate: max. 50 l/min1
• Delivery head: max. 8 mwc2
• Viscosity: min. 1 mPas – max. 1000 mPas
• Outer tube diameter: max. 43 mm
• Immersion length: 1000, 1200
• Materials outer tube: Stainless steel
• Seal: sealless
• Container: 1000 l IBC, 200 l drums
