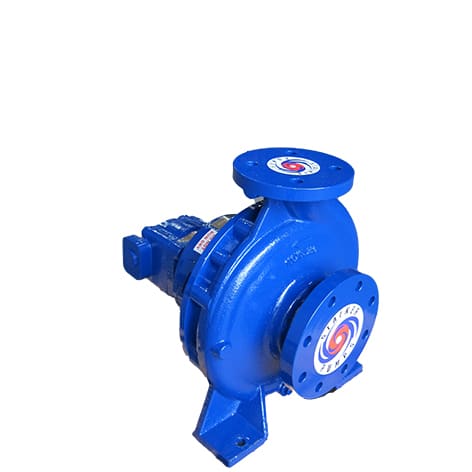

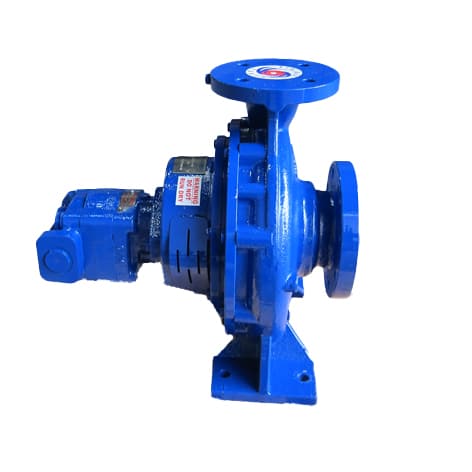

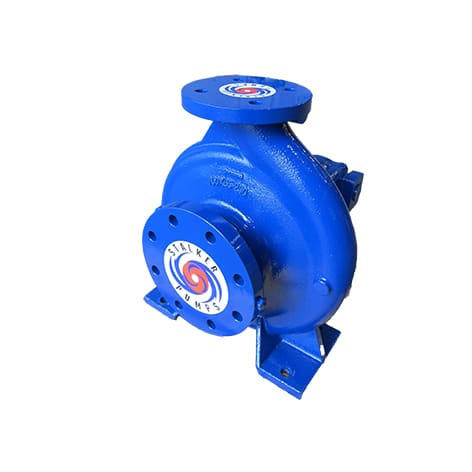

ISO Hydraulically Short-Coupled Pump

Compact, space-saving design for easier installation in tight areas
No bearing housing means fewer wear components and a lower cost of ownership.
Proudly Australian-made in Perth, WA, offering significantly faster lead times than imported alternatives
Available in a range of materials to suit different water qualities and operating conditions
Multiple seal options to match various application requirements
No coupling required, eliminating alignment issues and reducing installation and maintenance time

Industries Served

Mining

Mobile Dust Suppression

Model

Clear

ISO Hydraulically Short-Coupled Pump quantity

Description
Applications
Tech Specs
Materials of Construction
Characteristics
Hydraulic Drive

High quality hydrauically driven Stalker ISO pumps available in a number of different models/constructions with different sealing configurations to suit a multitude of applications.

Designed to operate spray bars for mobile dust suppression (subject to confirmation of flow and pressure requirements).
Can also be used to drive water cannons for heap leaching and dust suppression applications (subject to flow and pressure requirements).
Cleaning open-top tanks in water treatment or recycling plants
Clearing chutes, bins, and hoppers in material-handling systems

Pump Casing (Volute/Backplate): Cast Iron
Impeller: Cast Iron
Pump Shaft: Stainless Steel 431
Fasteners: Grade 8.8 Zinc Plated
Mechanical Seal: Carbon/Ceramic/Nitrile

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 65 NB AS2129 Table E
Discharge Size: 40 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 4.75l/s to 11.88 l/s
Flow Range (2400RPM): 5.25 l/s to 13.13 l/sec
Head Range (2000RPM): 42m to 52m
Head Range (2400RPM): 58m to 74m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 80 NB AS2129 Table E
Discharge Size: 50 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 7.875l/s to 19.69 l/s
Flow Range (2400RPM): 9.375 l/s to 23.44 l/sec
Head Range (2000RPM): 42m to 52m
Head Range (2400RPM): 58m to 74m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 80 NB AS2129 Table E
Discharge Size: 50 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 7.5 L/s to 18l/s
Flow Range (2400RPM): 8.75 l/s to 21 l/s
Head Range: (2000RPM): 61m to 78m
Head Range (2400RPM): 92m to 115m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 100 NB AS2129 Table E
Discharge Size: 65 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM) : 13.75 L/s to 34.38 l/s
Flow Range (2400RPM): 16.25l/s to 40.63l/s
Head Range (2000RPM): 25m to 34m
Head Range (2400RPM): 37.5m to 48m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 100 NB AS2129 Table E
Discharge Size: 65 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 to 2400 RPM
Flow Range (2000RPM): 13.5 L/s to 33.75l/s
Flow Range (2400RPM): 16.25l/s to 40.63l/s
Head Range (2000RPM): 40m to 51m
Head Range (2400RPM): 58m to 73m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 125 NB AS2129 Table E
Discharge Size: 80 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 12.75L/s to 31.88l/s
Flow Range (2400RPM): 15.375l/s to 38.44l/s
Head Range (2000RPM): 14.5m to 20.5m
Head Range (2400RPM): 21m to 29.5m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 100 NB AS2129 Table E
Discharge Size: 80 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 12.75L/s to 31.88l/s
Flow Range (2400RPM): 15.375l/s to 38.44l/s
Head Range (2000RPM): 14.5m to 20.5m
Head Range (2400RPM): 21m to 29.5m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 125 NB AS2129 Table E
Discharge Size: 100 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 27.5l/s to 68.75l/s
Head Range (2000RPM) : 24m to 33m
Flow Range (2400RPM): 35l/s to 87.5l/s
Head Range (2400RPM): 37m to 48m

Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 150 NB AS2129 Table E
Discharge Size: 125 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 45.5l/s to 113.8l/s
Head Range: 35m to 48m
Flow Range (2400RPM): 54.5l/s to 136.3l/s
Head Range (2400RPM): 50 to 70m
Key:
Recommended operating range

Low speed, low pressure
Model: GM130
Output Power: 16.66 kW
Oil Flow: 89 litres/min
Operating Speed: 2000 RPM
Output Torque: 79.62Nm
Gear Size-Inches: 1 1/4""
Motor Displacement: 40.3 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5 Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56.4 cc/rev

Low speed, low pressure
Model: GM131
Output Power: 30kW
Oil Flow: 125lpm
Operating Speed: 2000 RPM
Output Torque: 139.59 Nm
Gear Size-Inches: 1 3/4"
Motor Displacement: 56.4 cc/rev
High Speed, high pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5Nm
Gear Size-Inches: 1 3/4"
Motor Displacement: 56.4 cc/rev

Low speed, low pressure
Model: GM130
Output Power: 16.66kW
Oil Flow: 89 litres/min
Operating Speed: 2000 RPM
Output Torque: 79.62Nm
Gear Size-Inches: 1 1/4"
Motor Displacement: 40.3 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5Nm
Gear Size-Inches: 1 3/4"
Motor Displacement: 56.4cc /rev

Low speed, low pressure
Model: GM131
Output Power: 30kW
Oil Flow: 125lpm
Operating Speed: 2000 RPM
Output Torque: 139.59 Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56 cc/rev

High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56.3cc/rev

Low speed, low pressure
Model: GM130
Output Power: 16.66 kW
Oil Flow: 89 litres/min
Operating Speed: 2000 RPM
Output Torque: 79.62Nm
Gear Size-Inches: 1 1/4"
Motor Displacement: 40.3 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5 Nm
Gear Size-Inches: 1 1/2"
Motor Displacement: 48.3 cc/rev

Medium speed, medium pressure
Model: GM176
Output Power: 82.03 kW
Oil Flow: 370 litres/min
Operating Speed: 2000 RPM
Output Torque: 414.71Nm
Gear Size-Inches: 2 1/2""
Motor Displacement: 168 cc/rev
Low speed, low pressure
Model: GM265
Output Power: 102.53 kW
Oil Flow: 312 litres/min
Operating Speed: 2400 RPM
Output Torque: 349.57 Nm
Gear Size-Inches: 2""
Motor Displacement: 118 cc/rev

Low speed, low pressure
Model: GM176
Output Power: 82.03 kW
Oil Flow: 370 litres/min
Operating Speed: 2000 RPM
Output Torque:414.71 Nm
Gear Size-Inches: 2 1/2""
Motor Displacement: 168 cc/rev
High speed, high pressure
Model: GM265
Output Power: 102.53 kW
Oil Flow: 312 litres/min
Operating Speed: 2400 RPM
Output Torque: 349.57 Nm
Gear Size-Inches: 2""
Motor Displacement: 118 cc/rev
