JUNIORFLUX
For smaller quantities
- Suitable for transferring smaller quantities
- Can pump out of narrow-necked containers
- Powerful commutator motor with brushes
- Minimal force required to change drums
- Can pump out of narrow-necked containers
- Description
- Applications
- Characteristics
- Downloads

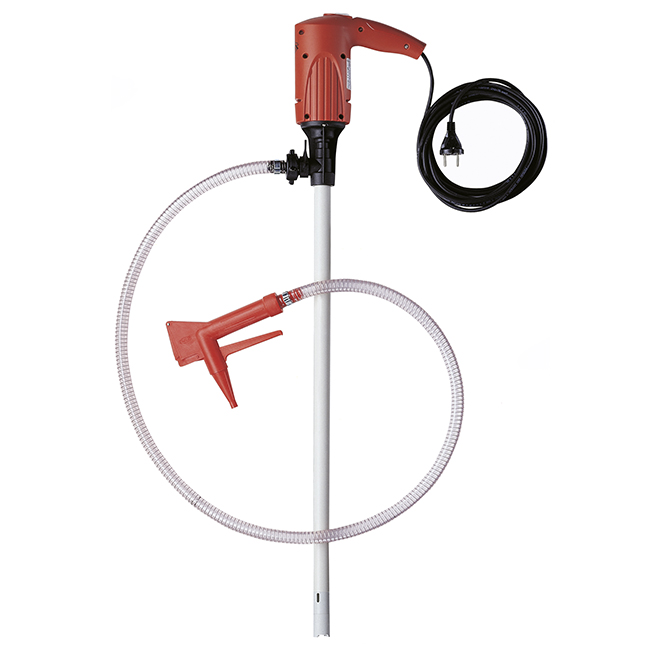

The small drum pump JUNIORFLUX with fixed motor FEM 3070 is suitable for pumping comparably small quantities out of containers such as canisters or drums of up to 200 litres. The small outer tube diameter allows pumping even out of narrow openings. The pump kit consists of a motor, 2 m hose and hand nozzle.
• Battery acid
• Ammonia water
• Glycols (up to 40%)
• Sodium hydroxide
• Soap solution
• Boric acid
• Phosphoric acid (up to 50%)
• Hydrochloric acid (up to 30%)
• Sulfuric acid (up to 40 %)
• Fruit acids
• Flow rate: max. 21 l/min1
• Delivery head: max. 5,6 mwc
• Viscosity: min. 1 mPas – max. 250 mPas
• Outer tube diameter: min. 25 mm – max. 32 mm
• Immersion length: 700, 1000
• Materials outer tube: Polypropylene
• Media / Fluids: Alkalis, Acids
• Seal: sealless
• Container: 200 l drums, Small containers, Hobbocks
