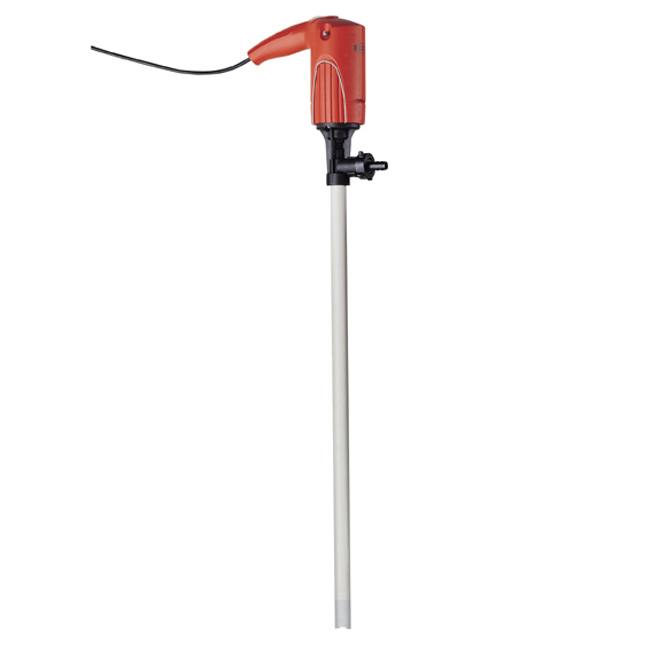

JUNIORFLUX F 314
With fixed commutator motor – sealless for pumping only one medium
- Suitable for transferring smaller quantities
- Can pump out of narrow-necked containers
- Minimal force required to change drums
- High operational safety due to overload cut-out switch
- Sealless in the liquid are
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts
- Downloads
The small sealless drum pump JUNIORFLUX F 314 with fixed commutator motor is especially suitable for pumping comparatively small quantities out of containers such as canisters or drums of up to 200 litres. The small outer tube diameter allows pumping even out of narrow openings.
• Acids and alkalis
• Liquid fertilizers
• Cleaning solutions
• Water
• Concentrated nitric acid
• Sulphuric acid
• Acetic acid
• Flow rate: min. 27 l/min1 – max. 57 l/min1
• Delivery head: max. 8,5 mwc1
• Viscosity: min. 1 mPas – max. 250 mPas1
• Outer tube diameter: min. 25 mm2 – max. 32 mm2
• Immersion length: 500, 700, 1000
• Materials outer tube: Polypropylene, Polyvinylidene fluoride, Stainless steel
• Media / Fluids: Acids, Alkalis, Aqueous salt solutions
• Seal: sealless
• Container: 200 l drums, small containers, Hobbocks
