Motor DSM
The “standard” motor for our eccentric worm-drive pumps with flange
- Constant speed
- Very low noise level
- Available with a speed of 700 or 930 rpm
- Description
- Characteristics
- Downloads

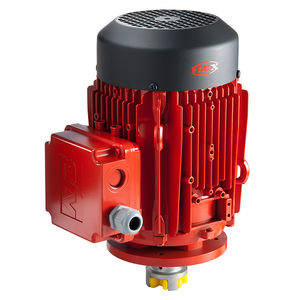

The FLUX three-phase motor “DSM” convinces with its constant speed and the low noise level. It is available with a speed of 700 or 930 rpm and a performance of 0.75 or 1.1 kW.
The DSM motors are alternatively available with motor protection switches or cable terminal box and in Ex-version for use in hazardous areas.
• Protection class: IP 55
• Ex: II 2 G Ex e II T3/T4
• Ventilation: External
• Tension(Volt): 230 V, 400 V
• Frequency: 50 Hz
• Performance (Watt): 800–1.100 W
• Weight: 12,5 – 23 kg
