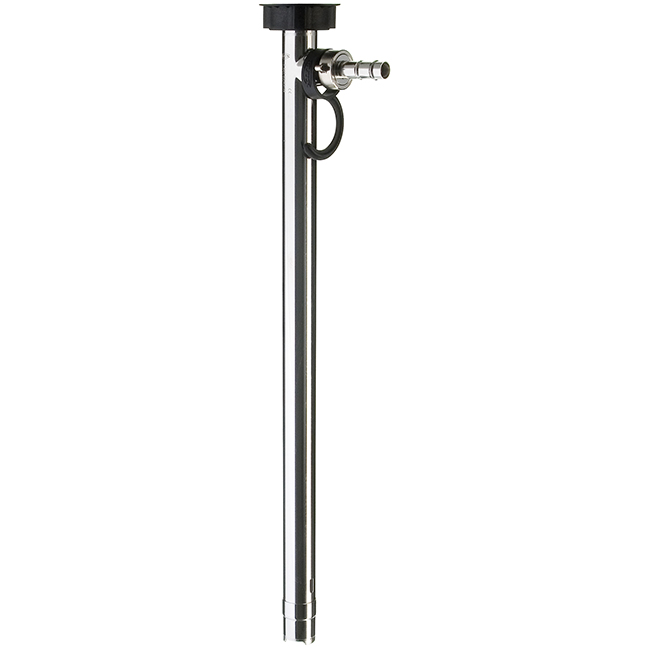

F 427 / FP 427
Drum pump for hygienic applications
- Ideal as hygienic pump
- Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
- Quickly and easily taken apart for cleaning
- Available as FOOD version
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts
- Downloads
The Drum pump F/FP 427 is ideal for hygienic applications and suitable for conveying media out of drums, IBCs and other containers. It can be easily and quickly disassembled for cleaning / sterilization and can be completely stripped down to individual parts. The pump has minimal dead spots. The drive shaft, the inner and the outer tube are made of stainless steel (316 Ti resp. 1.4581). The pump is also available as FOOD and 3A certified version and complies with international safety standards.
• Food
• Cosmetic products
• Thin liquids
Dimensional Drawing F 427 S3_066.pdf
Dimensional Drawing F 427 S3A_066.pdf
• Flow rate: max. 240 l/min1
• Delivery head: max. 13 mwc2
• Viscosity: min. 1 mPas – max. 1000 mPas2
• Outer tube diameter: max. 43 mm
• Immersion length: 700, 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Media with solid particles, Petroleum products, Thin liquid
• Seal: sealless in the liquid area
• Container: 1000 l IBC, 200 l drums
