F 550 GS
For the industrial application in version with planetary gear for medias up to max. 30.000 mPas
- Wide range of viscosity can be covered
- Positive displacement pump
- Smooth pumping and with very little turbulences
- Flow rate adjustable (in combination with frequency-controlled three-phase motor)
- Can be adjusted individually on the media’s characteristics
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads

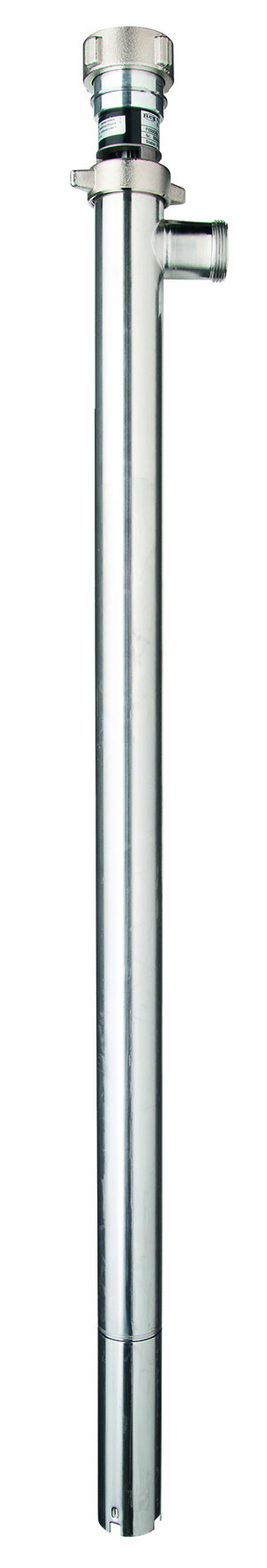

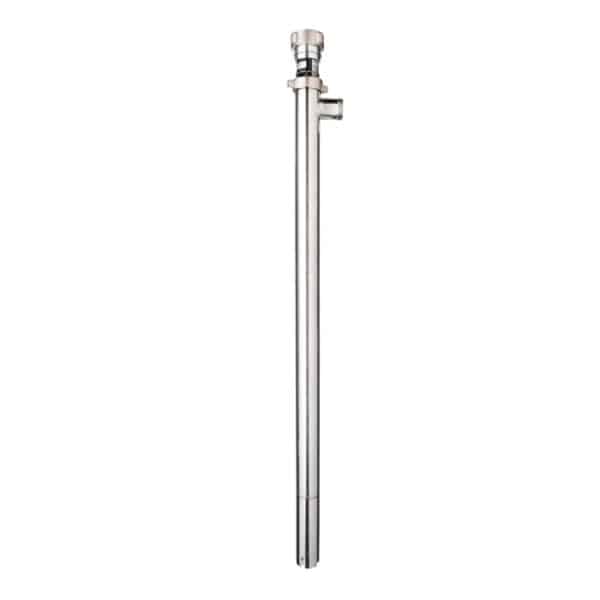

The FLUX eccentric worm-drive pump F 550 GS with planetary gear is suitable to pump thin to medium viscous media. The positive displacement pump works smoothly at constant pressure and ensures a gentle, pulsation-free pumping. The pump can be used mobile or stationary it has only a few components and can be easily dismantled.
• Vegetable oils
• Paints and varnishes
• Gluten
• Solder pastes
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 30000 mPas1
• Outer tube diameter: min. 50 mm – max. 54 mm2
• Immersion length: 700, 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Petroleum products, Solvents, Thin media
• Seal: open mechanical seal
• Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters
