F 550 TR
For horizontal use
- For containers which are not accessible from above
- Transfer at constant pressure
- Flow rate easy to calculate
- Can be mounted on trolley or panel
- Different stator materials are available: NBR black / white, FKM, PTFE version F 550 SXA/B only PTFE
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads

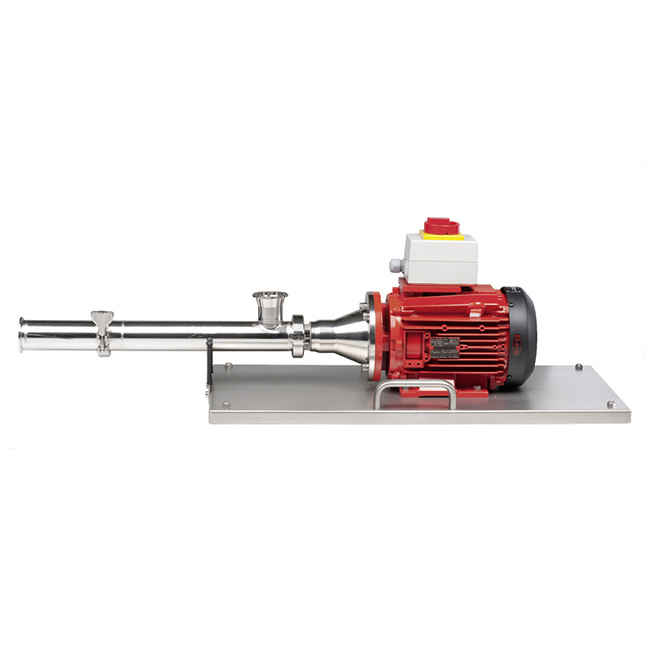

The FLUX eccentric worm-drive pump F 550 TR in horizontal version is perfect for containers that are not accessible from the top. It pumps thin to highly viscous, pasty, still flowing media. The positive displacement pump works with little turbulences at constant pressure and ensures a smooth, pulsation-free pumping. The pump can be mounted on a trolley or a console and can be used mobile or stationary, it has only a few components and can be easily dismantled.
• Low viscosity to high viscosity media
• Oils
• Adhesives
• Binders
• PU foams
• Flocculants
• Glue
• Paint
• Thixotropic
• Gaseous
• Solid or fibrous
• Slightly aggressive or neutral media
Dimensional Drawing F550-S-54-TR_console.pdf
Dimensional Drawing F550-S-54-TR_pump-trolley_spur-gear-drive-motor.pdf
Dimensional Drawing F550_S3X-54-26_TR.pdf
Dimensional Drawings F550_GS-54-26-TR_0515.pdf
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 80000 mPas1
• Outer tube diameter: max. 54 mm
• Length: 400
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Petroleum products, Solvents
• Seal: open mechanical seal
• Container: 1000 l IBC, Container with floor drain, Tanks > 1000 liters
- Three-phase motor
- Compressed- air motors FPM 4-8 Ex
- Spur gear drive motors
