F 716

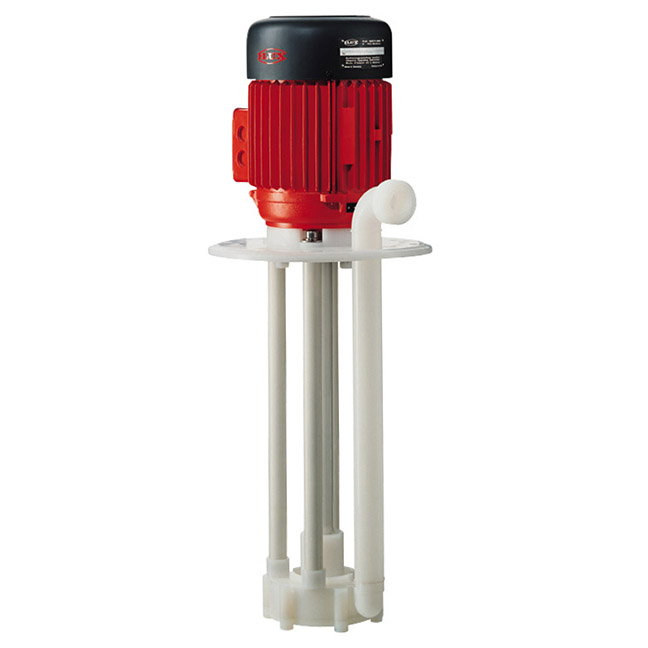

Stationary circulating and filter pump with impeller for delivery rates up to 750 l/min in compact design
- Four different sizes for different power ranges
- Smooth running of the pump due to robust support tube solidly connected to the mounting flange
- Very long service life, even in case of continuous use, suitable for dry running
- Four different sizes for different power ranges
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads
Suitable for conveying and circulating neutral or chemically aggressive fluids throughout the chemical industry and process engineering, electroplating, steel and stainless steel pickling lines, flue gas decontamination, exhaust air purification, water and waste water treatment
• Electroplating baths with e.g. copper sulphate, chromium, zinc electrolytes
• Chemically aggressive fluids such as inorganic and organic acids, alkalis, salts
Pump Curves F716 726 PP+PVDF 115.pdf
Pump Curves F716 726 PP+PVDF 135.pdf
Pump Curves F716 726 PP 185.pdf
Pump Curves F716 726 PP 230.pdf
Dimensional Drawing 716PP2 185.pdf
Dimensional Drawing 716PP2-135.pdf
Dimensional Drawing F716P2 230 special flange.pdf
Dimensional Drawings F716P2 230.pdf
Dimensional Drawing F716P2 185 pressure flange.pdf
Dimensional Drawing F716P2 185.pdf
Dimensional Drawings F716P2 135 square flange.pdf
Dimensional Drawing F716P2 135 special flange.pdf
Dimensional Drawing F716P2 135.pdf
Dimensional Drawing F716P2 115 square flange.pdf
Dimensional Drawing F716P2 115 special flange.pdf
Dimensional Drawing F716P1 135 square flange.pdf
Dimensional Drawing 716P1 185.pdf
Dimensional Drawing F716P1185pressure flange.pdf
Dimensional Drawing F716P1 230.pdf
Dimensional Drawing F716P1-230 pressure flange.pdf
Dimensional Drawing F716P1 230 special flange.pdf
Dimensional Drawing F716P1 185.pdf
Dimensional Drawing F716P2 115.pdf
Dimensional Drawing F716P1 135 special flange.pdf
Dimensional Drawing F716P1 135 pressure flange.pdf
Dimensional Drawing F716P1 135.pdf
•Flow rate: max. 750 l/min1
•Delivery head: max. 35 mwc1
•Viscosity: min. 1 mPas – max. 150 mPas1
•Diameter pump housing: max. 174 mm2
•Diameter mounting flanges: max. 340 mm2
•Materials outer tube: Polypropylene, Polyvinylidene fluoride
•Media / Fluids: Acids, Aggressive media, Alkalis, Fuels
•Seal: Sealless in the liquid area
•Container: Tanks > 1000 liters
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning
