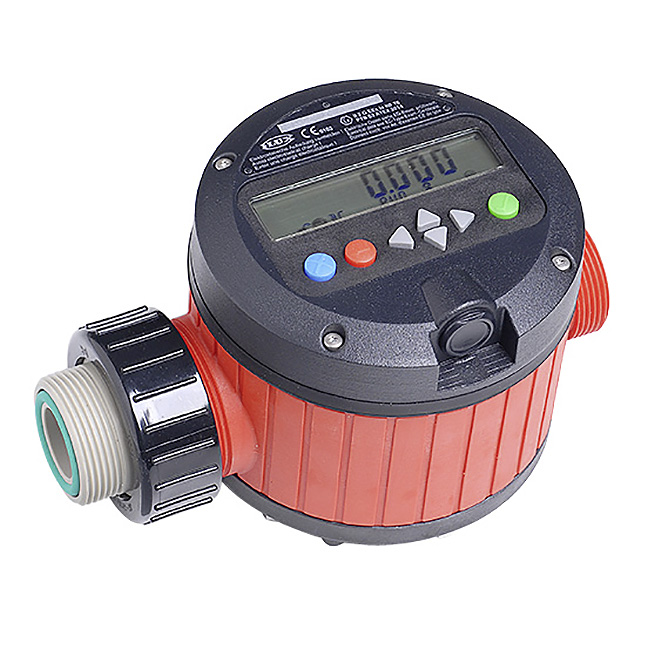

FMC 100
For manual or semi-automatic filling of different fluids
- Insensitive to small solids
- Easy handling
- No mains connections required
- For use in hazardous area
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts
- Downloads
FLUX Flow meters, nutating disc type FMC 100, are designed for use with FLUX drum pumps or stationary applications e.g. in piping systems. With the evaluation unit, FLUXTRONIC® filling and dosing processes of almost all fluids can be performed with maximum precision and highest safety. In automatic mode, it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way, the motor, magnetic valve, and the most different processes can be controlled.
Housing Material PP:
Battery acid, formic acid, ammonia, formic acid, boric acid, brake fluid, calcium chloride, acetic acid, ferric chloride, photo developers, glycol, mineral oil, sodium hydroxide, phosphoric acid, hydrochloric acid, sulfuric acid to 60 %, tartaric acid, Zinc chloride, citric acid
Housing Material ETFE:
Bromoacid, butylamine, chloroform, diethyl amine, ethyl acetate, essential oils, ethylene oxide, hydrofluoric acid to 40 %, aqua regia, nicotinic acid, nitrating acid to 70 %, petroleum ether, nitric acid (diluted), nitric acid (concentrated) sulfuric acid to 98 %, tetrahydrofuran, hydrogen peroxide
Housing Material S:
Acetone, butanol, ethyl, acetate, ethyl alcohol, freon / freon, glycerin, hexanol, isopropyl ether, linseed oil, methanol, methylene chloride, methoxybutanol, mineral oil, Perchlorethylene, petroleum, styrene, trichlorethylene
Dimensional Drawings FMC100_S.-.-A_0212_1.pdf
Dimensional Drawings FMC100_S.-.-A_0212_2.pdf
Dimensional Drawings FMC100_S.-.-A_0212_3.pdf
• Flow rate: min. 10 l/min – max. 100 l/min
• Filling accuracy: +/- 1 %
• Operating pressure: max. 6 bar
• Size of solids: max. 1,5 mm
• Viscosity: min. 1 mPas – max. 2500 mPas
• Housing Materials: Ethylene-Tetrafluoro-Ethylene, Polypropylene, Stainless steel
• Media / Fluids: Acids, Alkalis, Aqueous salt solutions, Fuels, Highly flammable media, Petroleum products, Solven
