For Alkalis
With drum pump F 424:
- No seal wear
- No bearing wear
- Low maintenance
- Built to last
With drum pump F 430:
- Easy disassembly
- Universally and flexibly applicable
- Easy to clean as no medium can get into the inner tube
- No carrying-over of the medium – one pump can be used for different media
- Description
- Characteristics
- Components Used
- Downloads

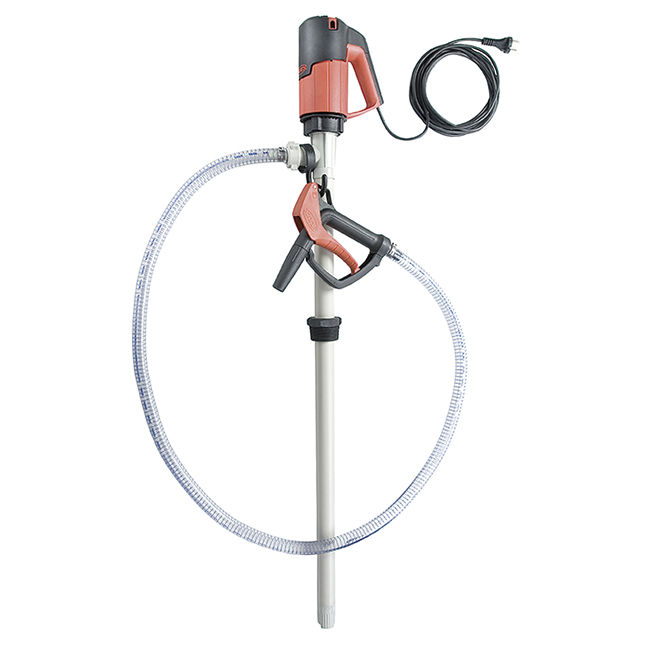

Pre-assembled pump kit to pump alkalis of 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 424/F 430 sealless or mechanical seal with an outer tube in polypropylene, commutator motor FEM 4070, hose, hand nozzle and compression gland.
• Flow rate: max. 60 l/min1
• Delivery head: max. 9,5 mwc
• Viscosity: min. 1 mPas – max. 600 mPas
• Outer tube diameter: max. 41 mm
• Immersion length: 1000, 1200
• Materials outer tube: Polypropylene
• Media / Fluids: Alkalis
• Seal: Sealless or with mechanical seal
• Container: 1000 l IBC, 200 l drums
- Available with:
Drum pump F 424 PP-41/36 in polypropylene (max. 60 l/min)
Drum pump F 430 PP-40/33 in polypropylene (max. 40 l/min) - Commutator motor FEM 4070, 230 Volt, 50 Hz, 500 Watt
- PVC hose DN 19, 2 m long
- Hand nozzle polypropylene
- Compression gland polypropylene
