JUNIORFLUX for AdBlue®
- Sealless in the liquid area
- Suitable for transferring smaller quantities
- Powerful commutator motor with brushes
- Can pump out of narrow-necked containers
- High operational safety due to overload cut-out switch
- Description
- Applications
- Characteristics
- Downloads

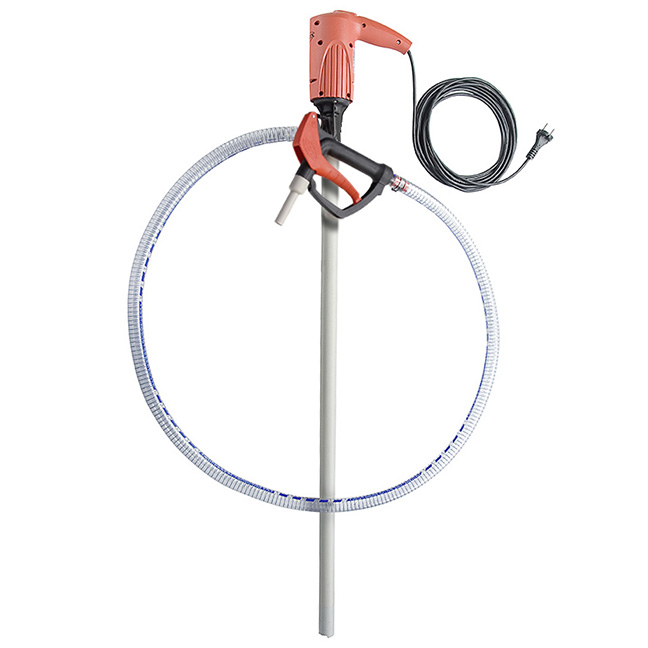

The small drum pump JUNIORFLUX with fixed motor FEM 3070 is especially suitable for pumping comparably small quantities out of containers such as canisters or drums of up to 200 litres. The small outer tube diameter allows pumping even out of narrow openings.
• AdBlue®
• DEF
• Flow rate: max. 36 l/min1
• Delivery head: max. 6,7 mwc
• Viscosity: min. 1 mPas – max. 250 mPas
• Outer tube diameter: max. 32 mm
• Immersion length: 1000
• Materials outer tube: Polypropylene
• Media / Fluids: AdBlue®, Fuels
• Seal: sealless
• Container: 200 l drums, Small containers, Hobbocks
