F 550 S
For the industrial application with bearing flange for media up to max. 80.000 mPas
- Wide range of viscosity can be covered
- Smooth pumping of thick, shear-sensitive and hardly flowable media
- Smooth pumping and with very little turbulences
- Flow rate adjustable (in combination with frequency-controlled three-phase motor)
- Sensitive media and solid components can be pumpeds
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads

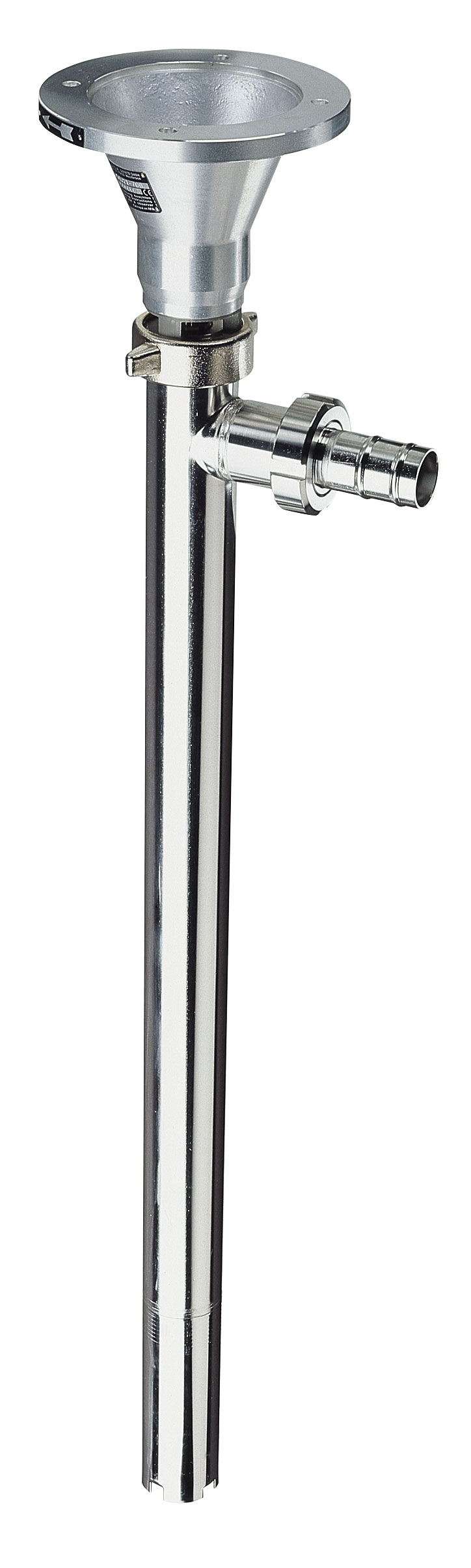

The FLUX eccentric worm-drive pump F 550 S with bearing flange is suitable to pump thin to highly viscous media. The positive displacement pump works smoothly with constant pressure and ensures a gentle, pulsation-free pumping. The pump can be used mobile and stationary, has only a few components and can be easily dismantled.
• Low viscosity to high viscosity media
• Oils
• Adhesives
• Binders
• PU foams
• Flocculants
• Glue
• Paint
• Thixotropic
• Gaseous
• Solid or fibrous
• Slightly aggressive or neutral media
F550_S-54-26_VISCOFLUX-mobile_0515.pdf
F550-S1_54-25_TR_VISCOFLUX-mobile_0515.pdf
F550-S3_54-25_TR_VISCOFLUX-mobile_0515.pdf
F550-S-54-TR_pump-trolley_spur-gear-drive-motor.pdf
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 80000 mPas1
• Outer tube diameter: min. 50 mm – max. 54 mm2
• Immersion length: 700, 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Petroleum products, Solvents, Viscous media
• Seal: open mechanical seal
• Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters
- Three-phase motor
- Compressed- air motors FPM 4-8 Ex
- Spur gear drive motors
