For Food and Pharma in Ex-version
- Ideal for frequent medium changes, hardening media, fast drying media, crystallizing media
- Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
- Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
- Can be taken apart into main components easily and quickly for cleaning
- Description
- Applications
- Characteristics
- Downloads

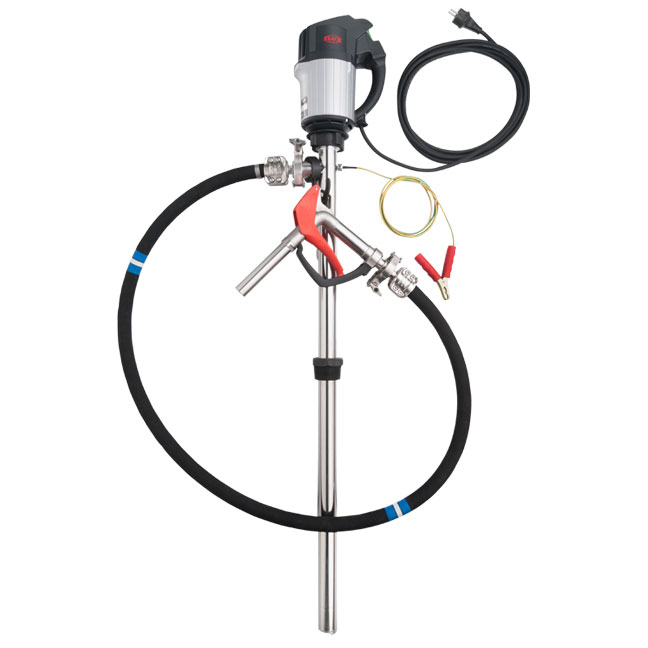

Pre-assembled pump kit for food and pharma in ex-version. The pump-kit is ideal for frequent medium changes and is suitable for conveying out of drums, IBCs or tanks. Due to the construction of the mechanical seal, the pump can be easily and quickly taken apart into its two main components. This allows good cleanability. Comprising drum pump FP 430 Ex FOOD, outer tube stainless steel, commutator F 460 Ex, hose, hand nozzle, hose connection, compression gland and earth cable.
•Food
•Cosmetic products
•Thin media
•Highly flammable media
•Flow rate: max. 60 l/min1
•Delivery head: max. 9 mwc2
•Viscosity: min. 1 mPas – max. 1200 mPas
•Outer tube diameter: max. 43 mm
•Immersion length: 1000, 1200
•aterials outer tube: Stainless steel
•Seal: with mechanical seal
•Container: 1000 l IBC, 200 l drums
