For Industrial Applications up to 30.000 mPas
With eccentric worm-drive pump
- Wide range of viscosity can be covered
- Optimal for viscous self-flowing median
- Suitable for shear-sensitive media
- High efficiency
- Description
- Applications
- Characteristics
- Downloads

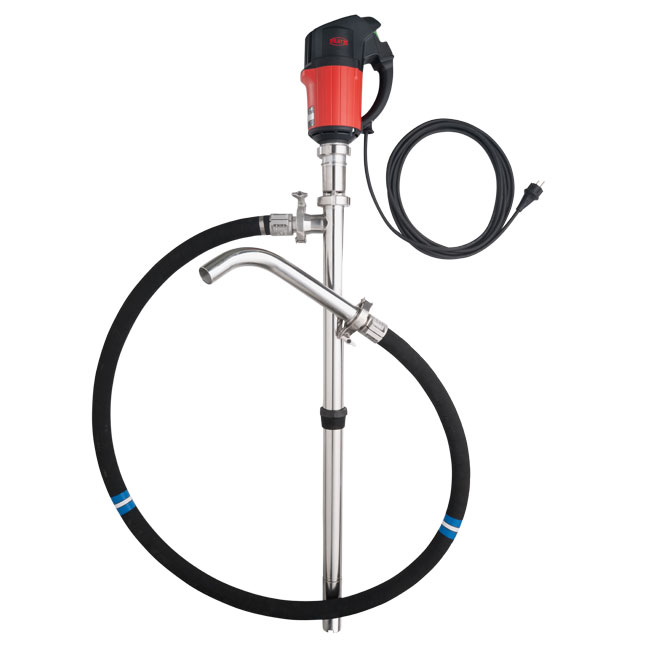

Pre-assembled eccentric worm-drive pump kit with planetary gear for industrial applications to pump thin to medium viscous media up to 30.000 mPas out of 200-l drums and IBCs. The positive displacement pump works smoothly at constant pressure and ensures a gentle, pulsation-free pumping. Comprising Eccentric worm-drive pump F 550 GS in 1000 or 1200 mm, Commutator motor F 457, Stator housing, Stator, Hose, Discharge spout, Hose connection and compression gland.
• Low viscosity to high viscosity media
• Oils
• Adhesives
• Binders
• PU foams
• Flocculants
• Glue
• Paint
• Thixotropic
• Gaseous
• Solid or fibrous
• Slightly aggressive or neutral media
• Flow rate: max. 21 l/min1
• Delivery head: max. 40 mwc1
• Viscosity: min. 1 mPas – max. 30000 mPas
• Outer tube diameter: max. 50 mm
• Immersion length: 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Viscous media
• Seal: open mechanical seal
• Container: 1000 l IBC, 200 l drums
