For Petroleum Products
- Pump with mechanical seal
- Universally and flexibly applicable
- Easy to clean as no medium can get into to inner tube
- No carrying-over of the medium – one pump can be used for different media
- Description
- Applications
- Characteristics
- Downloads

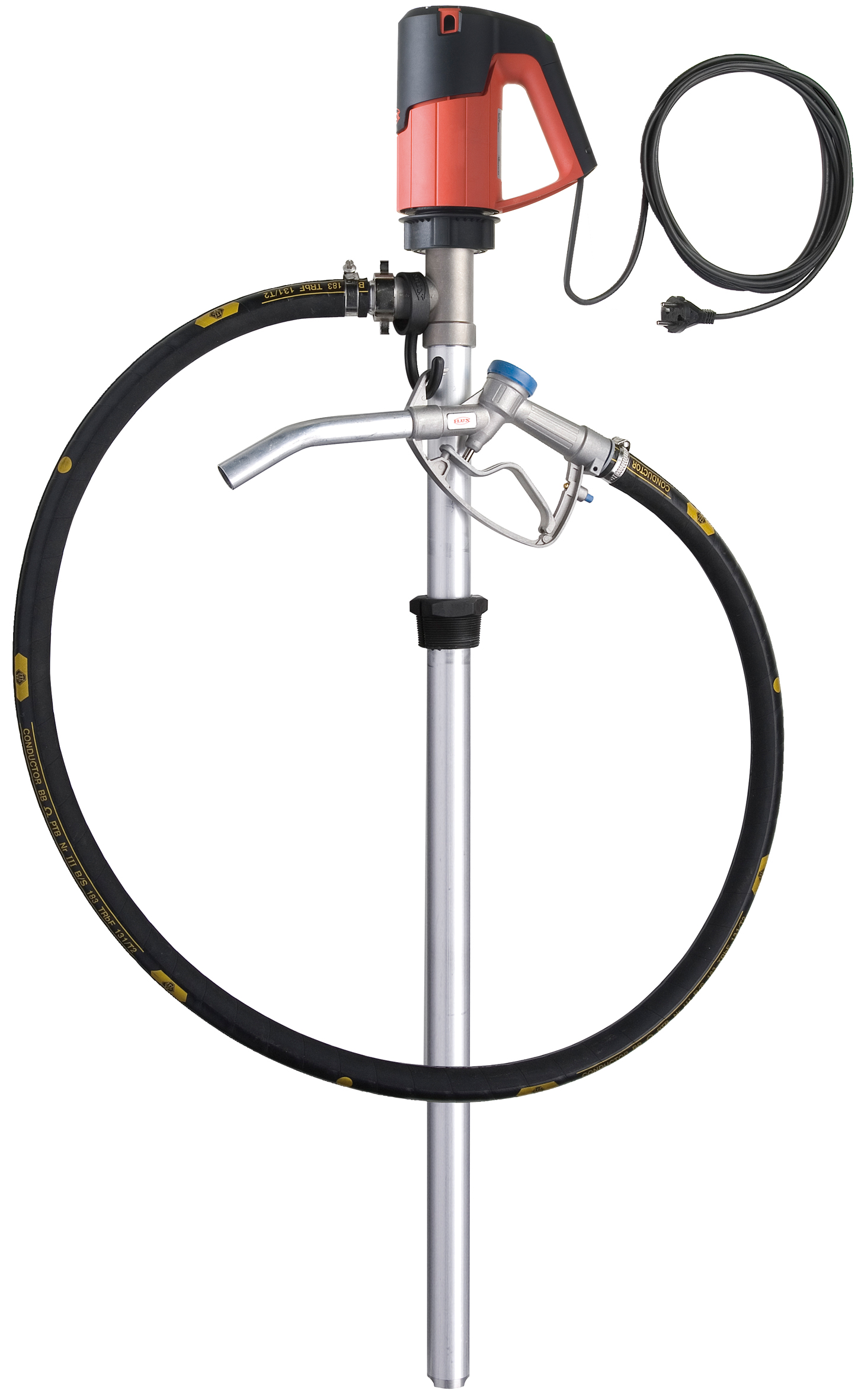

Pre-assembled pump kit to pump petroleum products out of 200L drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430, outer tube material is aluminium with commutator motor FEM 4070 (500 Watt) or commutator motor F 457 (800 Watt) available with hose, hand nozzle and compression gland.
• Diesel (up to 40 °C)
• Heating oil
• Hydraulic oil
• Machine oil
• Engine oil
• Flow rate: max. 80 l/min1
• Delivery head: max. 12 mwc
• Viscosity: min. 1 mPas – max. 1000 mPas
• Outer tube diameter: max. 41 mm
• Immersion length: 1000, 1200
• Materials outer tube: Aluminium
• Media / Fluids: Petroleum products
• Seal: with mechanical seal
• Container: 1000 l IBC, 200L drums
