JUNIORFLUX F 310
With fixed motor and mechanical seal for frequent medium changes
- Powerful commutator motor with brushes
- Suitable for transferring smaller quantitiess
- Can pump out of narrow-necked containers
- Minimal force required to change drums
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts

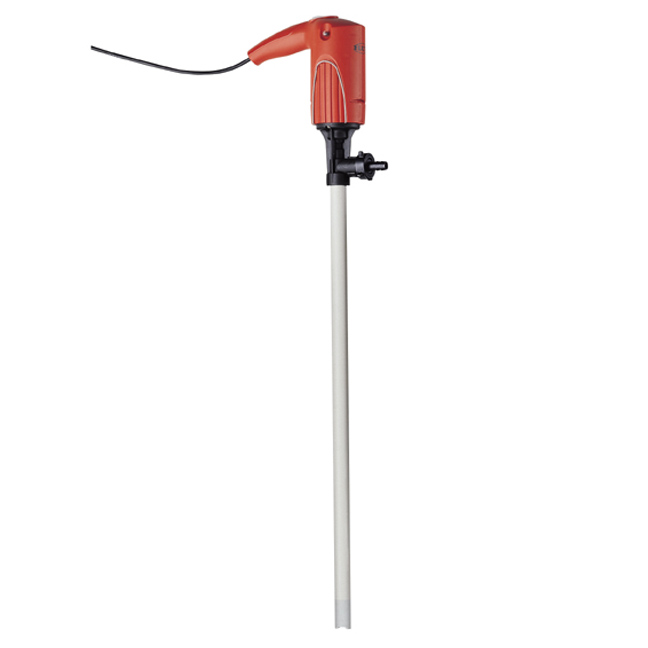

The small drum pump JUNIORFLUX F 310 with fixed commutator motor and mechanical seal is especially suitable for pumping small quantities out of containers such as canisters or drums of up to 200 litres. The small outer tube diameter allows pumping even out of narrow openings.
• Acids and alkalis
• Liquid fertilizers
• Cleaning solutions
• Water
• Concentrated nitric acid
• Sulphuric acid
• Acetic acid
• Flow rate: min. 17 l/min1 – max. 47 l/min1
• Delivery head: max. 6,8 mwc1
• Viscosity: min. 1 mPas – max. 250 mPas1
• Outer tube diameter: min. 25 mm2 – max. 32 mm2
• Immersion length: 300, 500, 700, 1000
• Materials outer tube: Polypropylene
• Media / Fluids: Acids, Alkalis, Aqueous salt solutions
• Seal: with mechanical seal
• Container: 200 l drums, small containers, Hobbock
